FY25系列:CX交换机OSPF介绍 – Aruba SE Club

FY25系列:CX交换机OSPF介绍

一、OSPF 协议基础

核心原理:通过LSA(链路状态通告)描述网络拓扑(含接口开销、连接对象等),设备间交互 LSA 构建LSDB(链路状态数据库),再利用SPF(最短路径优先)算法计算以自身为根的无环最优路径树,生成路由表。

  • Cost 计算:默认公式为100Mbit/s ÷ 接口带宽(如 100M 接口 cost=1,1G 接口因公式限制默认 cost=1,需手动调整适应现代网络)。
  • 应用场景:大型企业网(解决静态路由配置复杂、易出错问题,支持多区域划分)。

二、基础术语

术语 定义与作用
Router ID 标识 OSPF 设备的无符号整数(如 IP 地址),需全网唯一;未手动配置时自动选取接口最大 IP。
区域(Area) 将网络划分为组,减少 LSDB 规模;骨干区(区域 0)连接非骨干区,通过 **ABR(区域边界路由器)** 互连。
DR/BDR 在 MA(多路访问)网络中选举,DR负责 LSA 同步,BDR备份,减少邻接关系数量和 LSA 泛洪开销。
ASBR 引入外部路由(如静态路由)的设备,通过重分布将外部路由注入 OSPF。

三、核心表项

  1. 邻居表

    • 作用:记录邻居状态(如Full表示邻接关系建立完成),通过hello 报文(默认 10 秒间隔,40 秒超时)发现邻居并协商参数(如区域、Hello 间隔)。
    • 命令:show ip ospf neighbor detail

  2. LSDB(链路状态数据库)

    • 存储所有 LSA,包含:

      • 1 类 LSA:设备自身链路状态,仅在所属区域泛洪。
      • 2 类 LSA:DR 生成的网络 LSA,描述 MA 网络拓扑。
      • 3 类 LSA:ABR 生成的网络汇总 LSA,用于区域间路由传递。

    • 命令:show ip ospf lsdb

  3. 路由表

    • 由 SPF 算法计算生成,包含目的地址、cost 值、下一跳;命令:show ip ospf route

四、区域划分与特殊区域

  1. 区域划分目的

    • 避免单区域 LSDB 过于庞大,减少设备资源消耗(内存、CPU),限制网络变更影响范围。

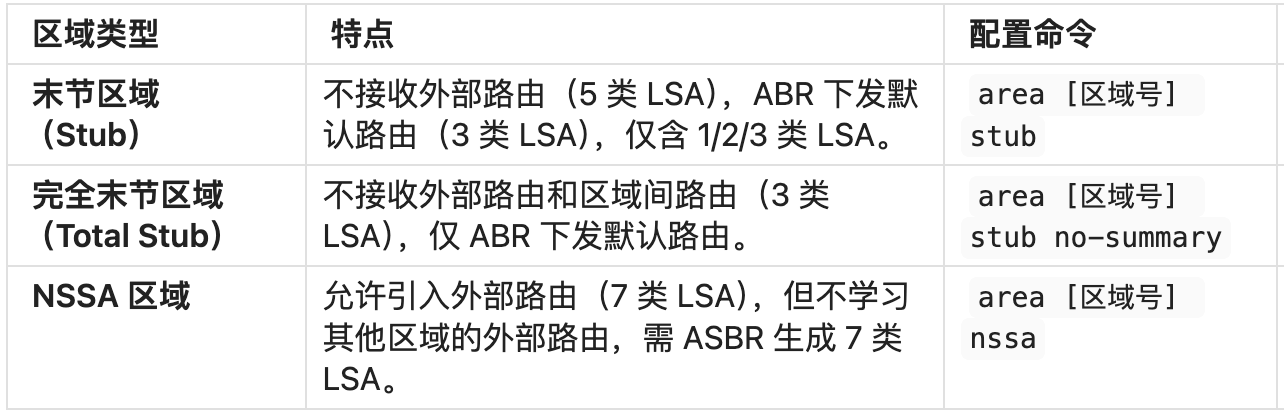

  2. 特殊区域

五、CX 交换机配置示例

  1. 基础配置流程

    • 启动 OSPF 进程:router ospf 1
    • 配置 Router ID:router-id 1.1.1.1
    • 宣告接口到区域:

      • interface GigabitEthernet 1/1/1
      • ip address 10.0.0.1/24
      • ip ospf 1 area 0

  2. 特殊区域配置

    • 配置末节区域:area 1 stub
    • 重分布静态路由:redistribute static(生成 5 类 LSA)。

  3. 验证命令

    • 查看接口 OSPF 状态:show ip ospf interface
    • 查看邻居状态:show ip ospf neighbor detail
    • 查看 LSDB:show ip ospf lsdb
